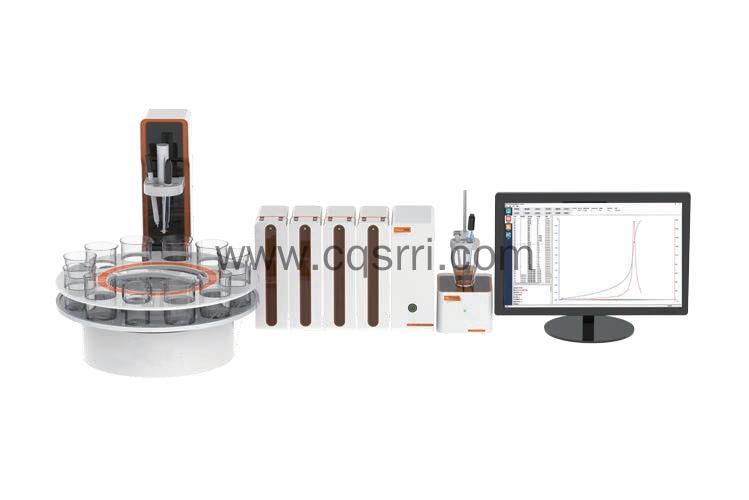

SR-TAB-B Fully Automatic TAN TBN Potentiometric Titrator
SR-TAB-B titrator is a high-precision laboratory experimental analysis instrument that uses potentiometric, dead-stop, Karl Fischer and other titration methods for capacity analysis. It can perform acid-base titration, redox, precipitation, complexation, dead-stop, Karl Fischer moisture, etc. It has the functions of constant titration, micro titration, end point setting titration, volume setting titration and mode titration, etc. At the same time, it can choose or build its own special titration mode according to the actual needs of users. It is also applied forTAN and TBN testing in lubricating oils according to ASTM D664 Test Method for Acid Number of Petroleum Products by Potentiometric Titration and ASTM D2896 Test Method for Base Number of Petroleum Products by Potentiometric Perchloric Acid.
Details
Model |
SR-TAB-B |
Titration module |
Potentiometric |
mV Measuring range |
-2000.0mV +2000.0mV |
mV Measuring |
Resolution: 0.1mV, Accuracy: 0.1mV±0.03% |
pH Measuring range |
-20.000pH +20.000pH |
pH Measuring |
Resolution: 0.001pH Accuracy: 0.003pH |
Temp.Measuring range |
-5~120℃ |
Temp. Accuracy |
±0.1 |
Max number of titration module |
4 (2 modules in the standard package) |
Max number of simultaneous filling module |
4 (2 modules in the standard package) |
Burette optional |
1mL 5mL 10mL 25mL (10ml burette in the standard package) |
Burette resolution |
1/1500000 |
Burette refill time |
16 seconds (100% filling speed) |
User grading management system |
3 level (Customizable operation permissions) |
Audit trail |
○ |
Controlled by |
PC |
WiFi module |
○ |
Stirring |
Magnetic stirring, upper stirring (optional) |
Electrode interface type |
mV/pH measuring electrode interface, reference electrode interface, |
|
PT1000 temperature electrode interface |
