Pirani Vacuum Gauge

Pirani Vacuum Gauge

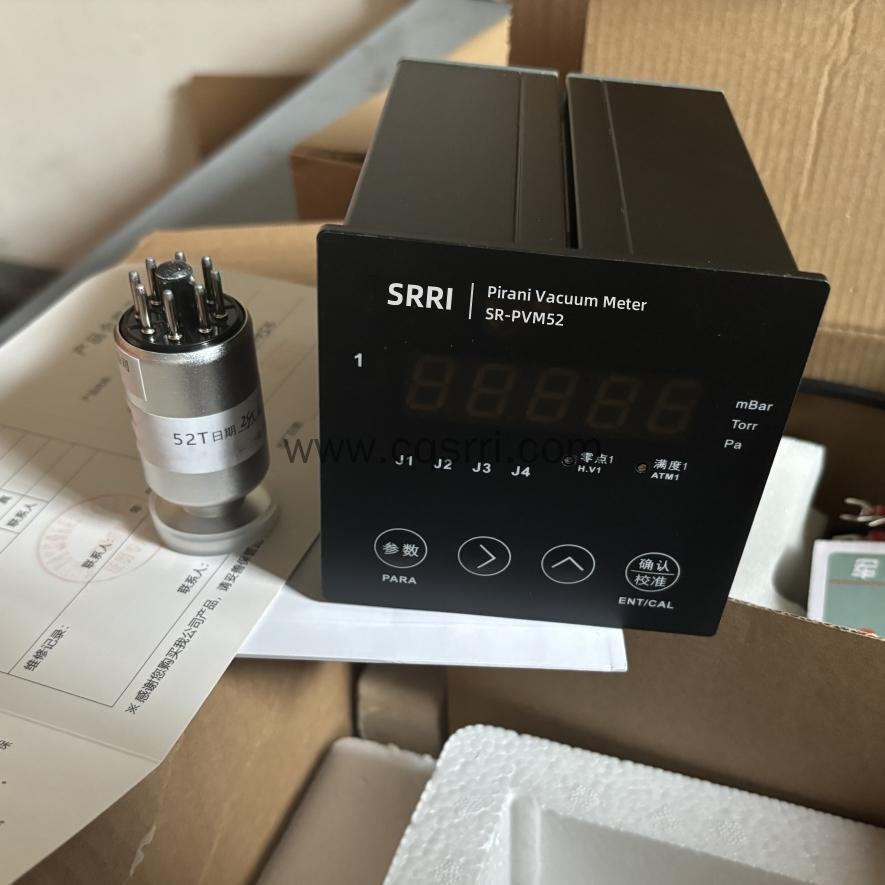

This Pirani vacuum meter can be connected with two Pirani gauges to control up to four relay contact outputs. It also has the functions of analog output and serial communication. Suitable for measurement and control of medium and low vacuum.
Details
Power supply: 100~220VAC,50/60Hz
Rated power : 10W
Operating environment: -10 ~ 40’C, humidity less than 85%
Control output form: maximum 4 relays contact output
Instrument weight: about 0.7Kg.
Matching Gauge Tube: 52T Pirani Gauge;
Measuring range and accuracy
2.5x103 ~ 5.0x10-1 Pa, indicated value 30%
5.0x10-1 ~ 1.0x10-1 Pa, measurable
1.0x105 ~ 2.5x103 Pa, measurable
Effective control range: 2.5x103 ~ 5.0x10-1 Pa
